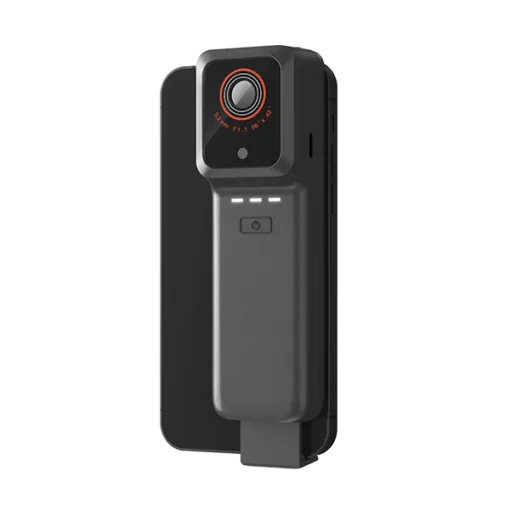

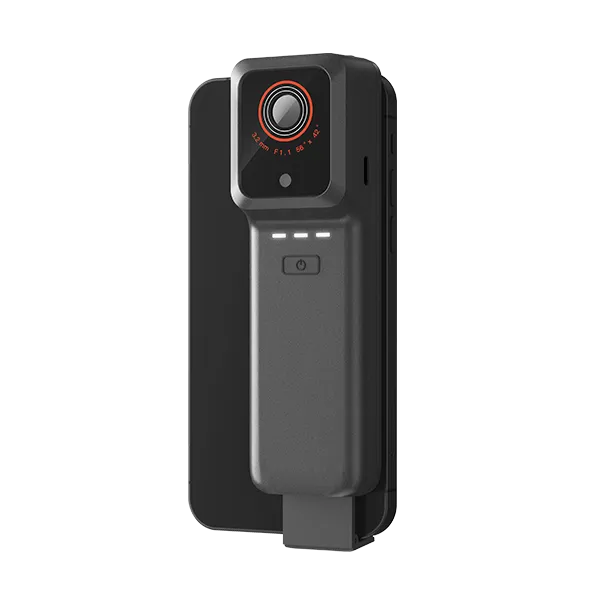

Raythink IX2 AIR Wireless Thermal Camera for Smart devices
Raythink IX2 AIR Wireless Thermal Camera for Smart devices - Image 2

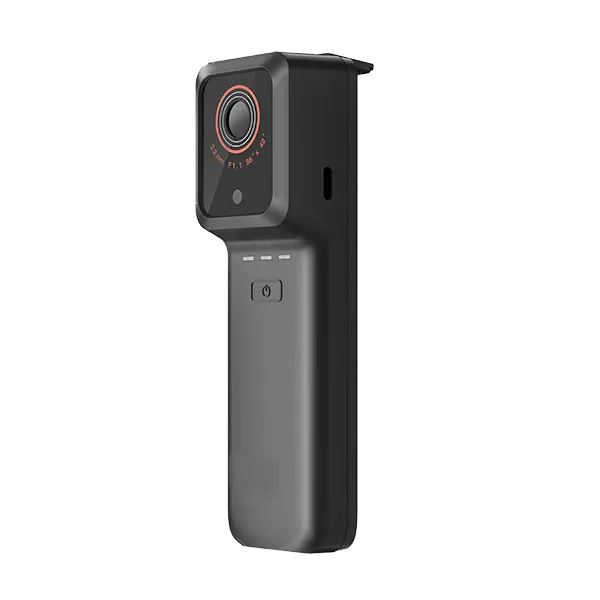

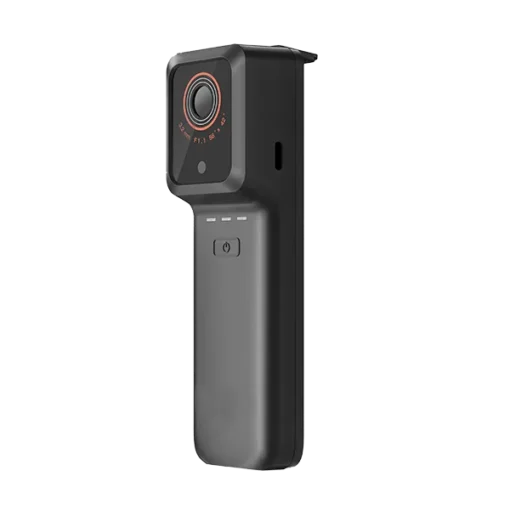

Raythink IX2 AIR Wireless Thermal Camera for Smart devices - Image 3

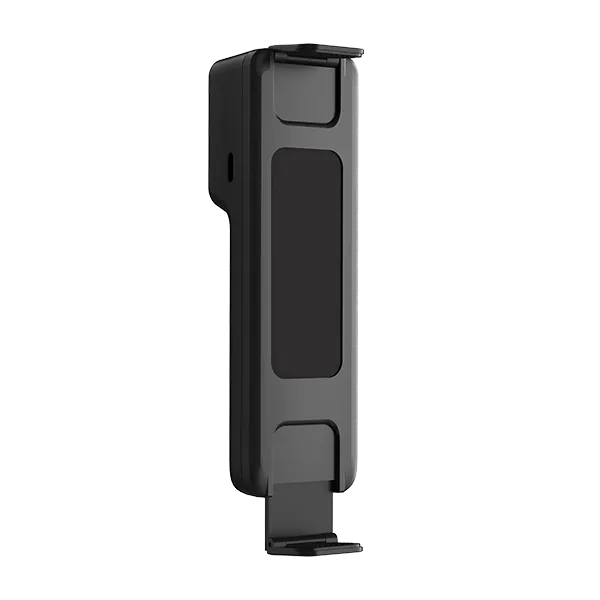

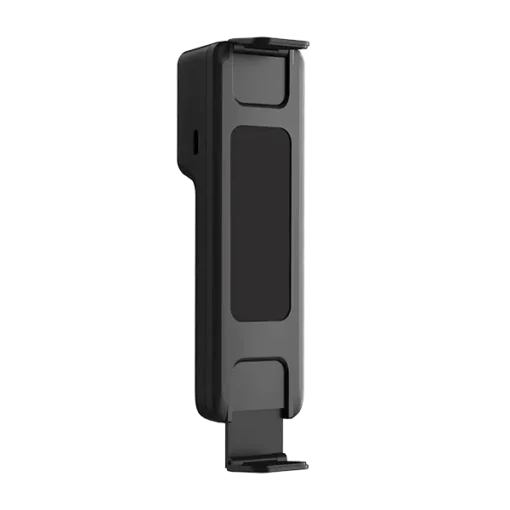

Raythink IX2 AIR Wireless Thermal Camera for Smart devices - Image 4

Raythink IX2 AIR Wireless Thermal Camera for Smart devices

  • Equipped with a high-sensitivity 256×192 resolution infrared detector, the IX2 AIR can be freely combined or separated with a smartphone according to the scenarios.
  • It supports wireless image transmission and operation.
  • With the supporting App for functions such as real-time analysis and transmission, the device can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields.
Category:
Add to quote

Description

Feature

logo

Wireless Measurement, Unlocking New Scenarios

1. Image transmission delay < 300ms.
2. With 2 hours of battery life, productivity is always alive.
3. The fuselage comes with a back clip and standard threaded holes, which can be matched with various accessories to facilitate users to observe targets at different angles.

logo

Clear Thermal Images, Precise Temperature Measurement

  1. Built-in 12μm 256×192 infrared detector, featuring low power consumption and small size.
  2. 40mK professional-grade high thermal sensitivity, capturing smaller temperature differences; wider temperature measurement range of up to 550°C.
  3. Four image modes + 7 palettes, suitable for temperature observation of different targets and different scenes.
logo

Hard-core Configuration, Easy to Use and Convenient

  1. IP54 waterproof and dustproof, 2m drop protection, light and slim design that fits your hand.
  2. Faster Wi-Fi connection with the assistance of Bluetooth; OTA upgrade can be easily completed through the mobile app.
  3. Professional app that supports full-scenario applications such as real-time analysis and offline analysis of temperature measurement images.

*The 8-meter image transmission distance is the test value taken when the space is without obstruction.

Specification

Thermal Imaging
Detector Type Uncooled infrared detector
Infrared Resolution 256×192
Pixel Size 12μm
Spectral Band 7.5-14μm
NETD ＜40mK (25°C,F1.0)
Frame Rate 25Hz
Lens Focal Length 3.2mm
FOV 56°×42°
IFOV 3.75mrad
Focusing Mode Fixed focus
Minimum Imaging Distance 0.3m
Measurement Range -20°C~+150°C, 100°C~550°C
Measurement Accuracy ±2ºC or ±2% of readings, whichever is greater
Imaging Display
Visible Light Camera 2 MP
Palettes 7 options
Image Mode Infrared, visible, PlP, blending, detail enhancement
Temperature Width Stretch Auto
Measurement and Analysis
App Analysis Function Central temperature point/Highest temperature point/Lowest temperature point, 1 preset analysis template (support 3 custom points, 3 custom lines, and 3 custom frames)
System Functions
Communication Protocol Wi-Fi, USB, Bluetooth
Remote Access and Control WiFi, Type-C
Others
Battery 1050mAh
Battery Life About 2h
Charging Mode USB Type-C
Tripod Socket UNC 1/4-20 interface for tripod
Operating Temperature -10°C~+50°C
Operating Humidity 10%~90% (non-condensing)
Storage Temperature -20°C~+60°C
Ingress Protection Rating IP54
Shock and Vibration 2G(EC60068-2-6)、25G(EC60068-2-29)
Weight and Dimensions 132g
Authentication CE/RoHS/DGM/WEEE/Measure
Packing List Data cable×1, complete machine×1, quick start guide×1, packing list×1, quality certifcate×1

Application Scenarios



Power Maintenance


Equipment Inspection
Equipment Inspection


HVAC Leak Detection
HVAC Leak Detection


Circuit Board Repairing
