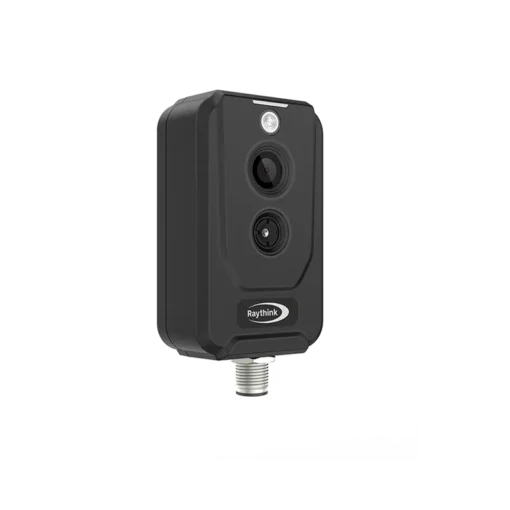

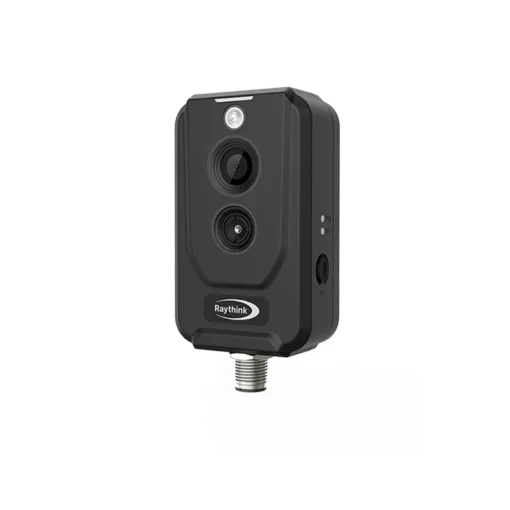

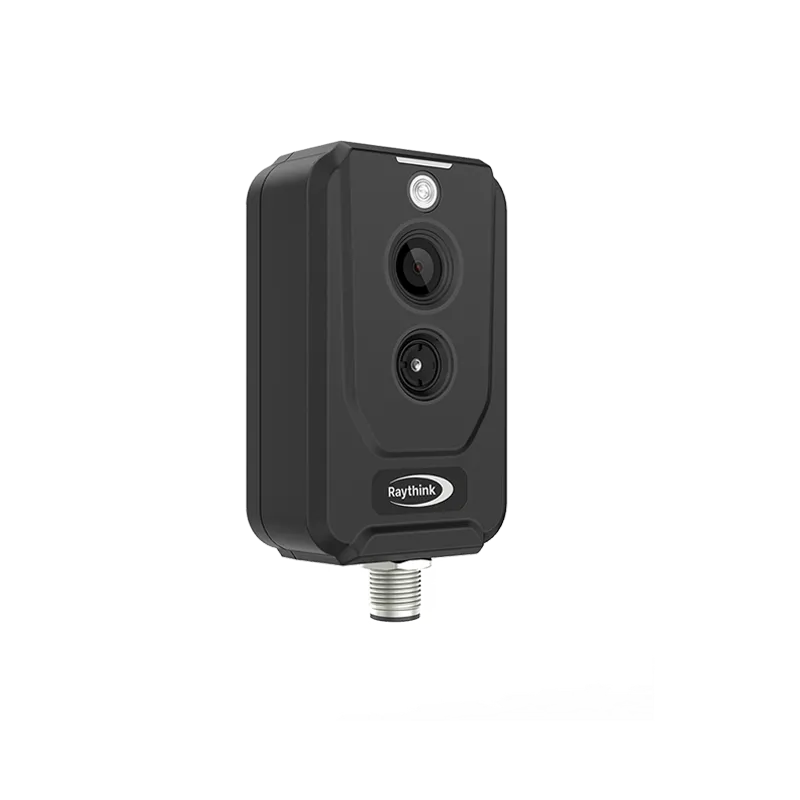

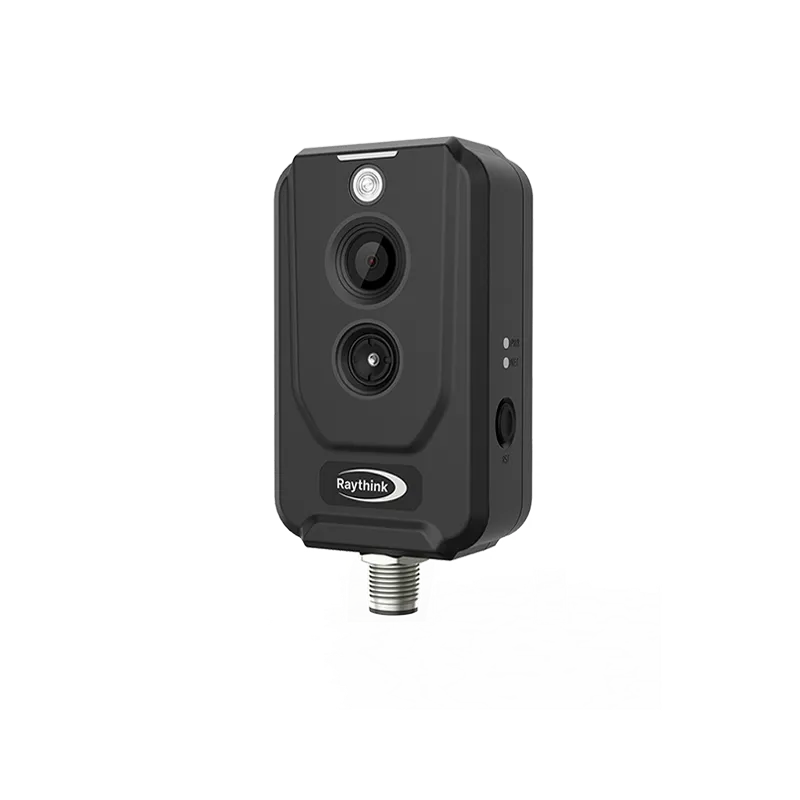

Raythink TN220 Thermographic Cube Camera

TN220 is developed based on the 256×192 WLP infrared module, providing users with high-quality images. It features a compact design with POE power supply support and flexible mounting options, including magnetic installation, ensuring simple and convenient wiring. This device offers a visualized temperature monitoring solution for confined spaces and close-distance applications in fields such as electricity, renewable energy, and industrial manufacturing.

Category: Raythink

Description

256×192 infrared resolution, providing excellent imaging quality for customers
Support switching of 20 palette effects, applicable for a variety of scenarios
Support 1~25Hz adjustable frame rate, with synchronous and real-time image thermal image
Both 90° and 56° FOV specifications available

High IP grade of IP67 for temperature monitoring in harsh environments
Operating temperature range of -20°C~+60°C, enhancing the temperature adaptability in confined spaces
PC and Aluminum alloy shell, solid and durable

Support recognition algorithms for smoke and fire monitoring and regional intrusion to offer
dual security guarantees
Support thermal image capture and historical data record, making data analysis more eﬃcient and convenient
Support protocols such as MQTT, Modbus TCP/RTU, ONVIF and GB28181 to help integrate system solutions Provide SDK and development support to assist users for secondary development

Easy mounting via various options such as magnetic mounting,wall mounting,vertical mounting,tripod mounting
Single aviation design, POE power supply, enable users to measure temperature at a low cost
Reserve the RS485 interface and IO alarm interface for alarm linkage

Specification

Thermal Imaging Parameters

Detector Type	VOx Uncooled FPA Detector
Infrared Resolution	256×192
Spectral Band	7.5～14μm
Thermal Sensitivity (NETD)	≤40mK(@25°C, F#1.0,25Hz)
Frame Rate	1-25Hz, adjustable
Pixel Pitch	12μm
Lens Focal Length	3.2mm;2mm
Field of view (FOV)	56°× 42°; 90°×65.1°
Focus Mode	Athermalized Prime Lenses
Palette	20 palettes available in total, such as black-hot/white-hot/rainbow

Temperature Measurement Function

Measurement Range	-20°C~+150°C, 0°C~550°C
Measurement Accuracy	±2°C or ±2%
Temperature Analysis	Global, point (12), line (12), area (12) and mask region (12) temperature measurement rules as well as alarm linkage
Isotherm	Support isotherm setting
Temperature Width Stretch	Support temperature width stretch display
Thermal Image Capture	Support thermal image capture and secondary analysis

Dual-Spectral Parameters

Dual-Spectrum Fusion	Support
Light Filling	Support
Visible Light Resolution	1600×1200

Communication Interface

Alarm Interface	1-channel IO alarm input, 1-channel IO alarm output
Communication Interface	1-channel RS485 interface
Network Interface	1-channel RJ45, 100M adaptive Ethernet port, support POE power supply
Power Supply	DC 10~30V 1A/ POE(802.3af)
Storage Interface	32GB Internal Memory

Network Function

Browser	Support browsers like Google, Firefox, Edge, etc. in Chinese and English
Interface Protocol	ONVIF, GB28181, Modbus TCP/RTU, MQTT, SDK
Network Protocol	IPv4, DHCP, HTTP, HTTPS, RTSP, SMTP, FTP, UPnP

Intelligent Analysis

Abnormal Alarm	Support detection of exceptions such as burn warnings, SD card exception, network cable abnormality and illegal access
Intelligent Detection	Support intelligent event analysis such as smoke and fire detection, regional intrusion, tripwire intrusion, passenger and vehicle recognition and target filter

Video Parameters

Image Encoding Format	JPEG
Video Compression Standard	H.264/H.265
Video Encoding Format	MP4

Others

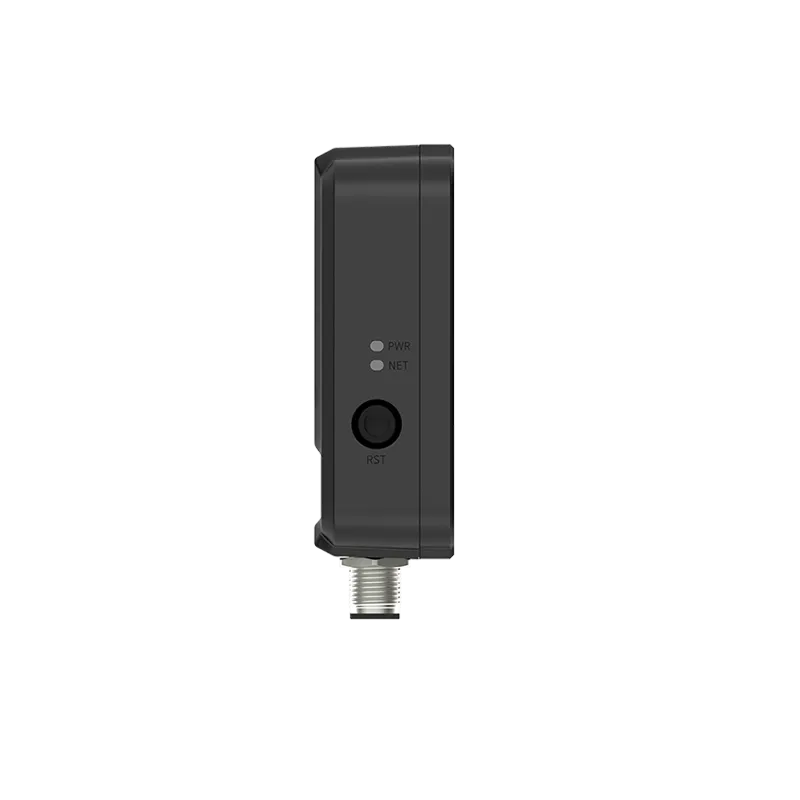

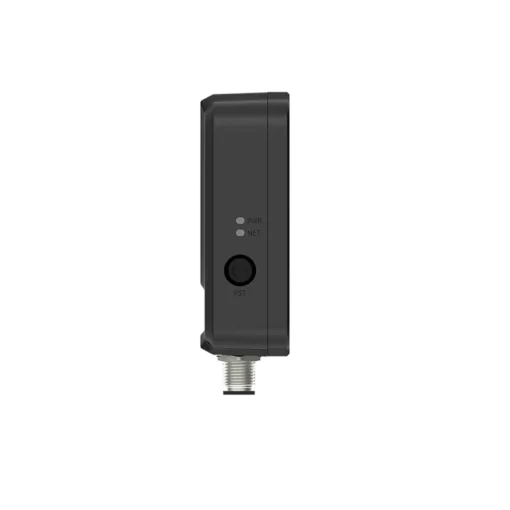

Reset Button	Support
Operating Temperature and Humidity	-20°C~+60°C, <95%RH
Ingress Protection Rating	IP67
Power Consumption	≤2.6W

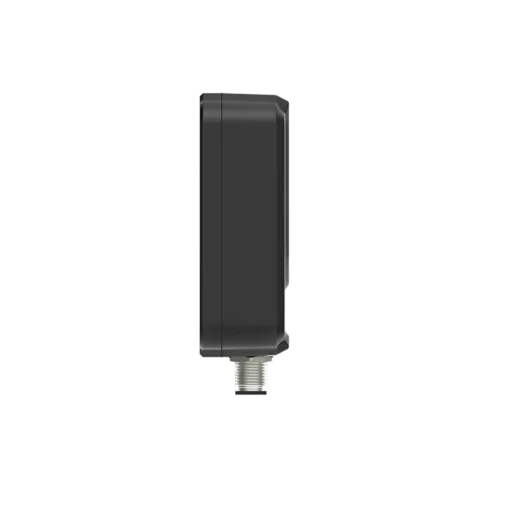

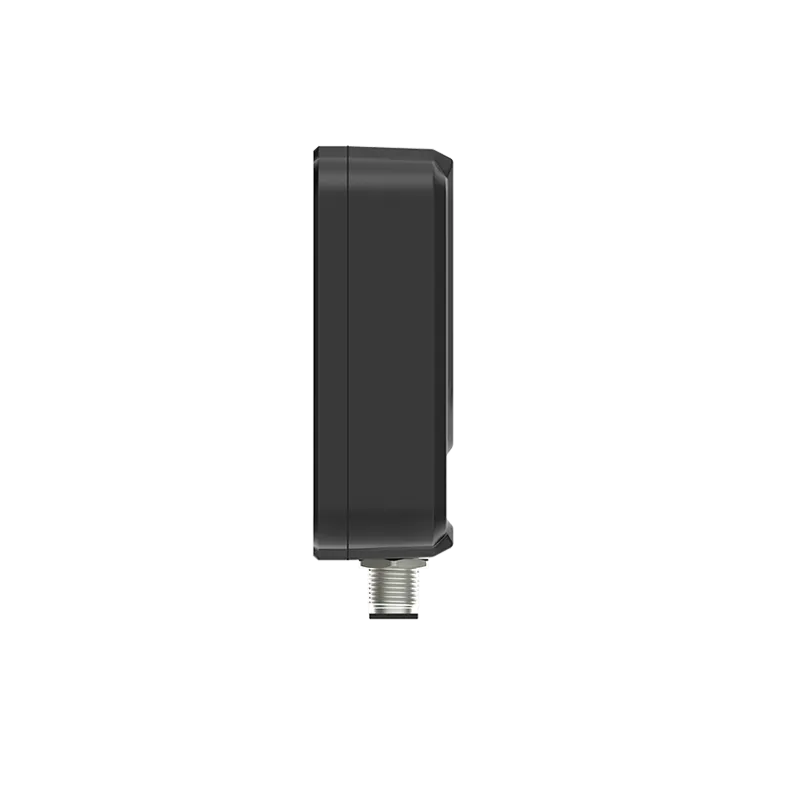

Dimensions	93mm×56mm×31.5mm
Weight	152g

Application Scenarios

Power House

Lithium Battery Storage

Industrial Manufacturing

Data Center
